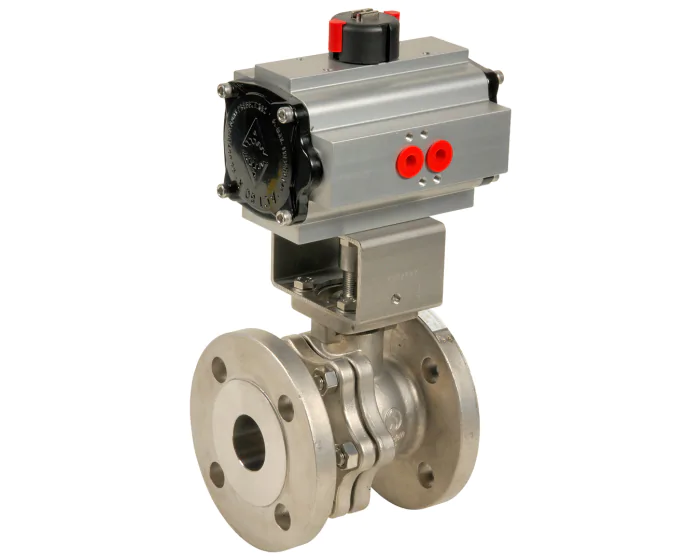

The 753 series stainless steel ball valve has a CF8M body and ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN16/40 |
| Seats | TFM 1600 |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting | 274402015100 | S1002940 |
€340.69
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return | 274402016101 | S1002941 |
€377.40
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting | 274403015100 | S1002942 |
€367.20
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return | 274403016101 | S1002943 |
€405.96
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting | 274404015100 | S1002944 |
€406.76
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return | 274404016102 | S1002945 |
€492.26
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Double acting | 274405015101 | S1002946 |
€512.79
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Spring return | 274405016102 | S1002947 |
€579.84
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting | 274406015101 | S1002948 |
€572.87
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return | 274406016102 | S1002949 |
€619.69
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting | 274407015102 | S1002950 |
€742.53
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return | 274407016104 | S1002951 |
€842.20
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting | 274408015103 | S1002952 |
€887.67
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return | 274408016105 | S1002953 |
€1,089.40
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting | 274409015103 | S1002954 |
€1,110.76
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return | 274409016105 | S1002955 |
€1,300.37
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting | 274410015104 | S1002956 |
€1,595.96
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Spring return | 274410016106 | S1002957 |
€1,854.07
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Double acting | 274411015105 | S1002958 |
€2,718.79
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Spring return | 274411016107 | S1002959 |
€3,066.73
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Double acting | 274412015106 | S1002960 |
€3,437.64
(excl. btw)
|
add to cart |
| Flanged PN16/40 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return | 274412016107 | S1002961 |
€3,696.21
(excl. btw)
|
add to cart |
